CONTACT

Paul T. Portugal

561.307.9845

TITLE

T-Table tm

PATENT #: 6,257,153

K/D?

NO ASSEMBLY REQUIRED

INVENTOR

Antonio F. Portugal & Paul T. Portugal

SPECIFICATIONS

26" HIGH with a 14 1/4" LONG x 15" WIDE tabletop; 3/4" thick throughout

12

Top_10: 11 5/16" X 15"

Top_12: 3" X 15"

TopSupport_52: 1 1/2" X 11 5/16"

Leg_14: 22" X 11 1/4"

Leg_16: 24 1/2" X 11 1/4"

Arch_20: 5" X 15"

Arch_18: 3" X 4 3/4"

Distance to Center of Handle: 1 7/8"

14 5/8"

(may contain a specific type of stain or with an acrylic lacquer finish or natural)

Rough Component Placement:

BACKGROUND OF THE INVENTION

The present invention as it pertains to its field of endeavor, is intended and designed to solve a long-term discrepancy among conventional TV/sofa tables and trays. It relates to tables and more particularly to a folding, collapsible, TV/sofa table which can be conveniently positioned when in use or folded up into a collapsed state for desired storage.

When dining in front of the television, doing homework at the sofa/couch, entertaining guests, or using your laptop computer, it is usually difficult to find a nice, sturdy and flat surface to do your work or relax. There are pieces of furniture specifically designed for these types of things, but they are usually big and awkward and need a lot of storage space. With the T-Table, all of these activities can be accomplished with little bulk and effort, thus making it convenient to work or enjoy yourself in the convenience of your own home or elsewhere, being that the T-Table is portable as well.

BRIEF SUMMARY OF THE INVENTION

It is one object of the present invention to provide a portable table, which can be conveniently folded up and collapsed when not in use. It is another object of the present invention to provide a collapsible TV/sofa table, which addresses the problems involved with conventional TV/sofa tables. According to the preferred embodiment of the present invention, its utilization solves several problems and is idealistic in the fact that it allows for a sturdy table that can be used in various locations for varied reasons. Whether you are reading, using a laptop computer, or enjoying a snack, meal, or beverage, the present invention is the perfect companion. It may be positioned next to a chair or sofa/couch where it can be brought right up to you and allows for a remarkable amount of legroom. This is the beauty of the present invention. Unlike conventional tables that are a drag in that they are either on top of you or cramp your legs when in use, the present invention allows for ample legroom, while remaining superior in its use as a customary table. Also, those heavy, awkward sofa tables usually end up clipping your fingers while trying to use, which can be dangerous. The present invention is easy to use and light weight making it a useful companion. Not only is it a useful companion, but the present invention makes for a beautiful piece of furniture designed virtually for any room in the home. Its flat surface tabletop is superb for beverages, food, or accessories, making the present invention the most versatile and attractive piece of furniture available.

ABSTRACT OF THE DISCLOSURE

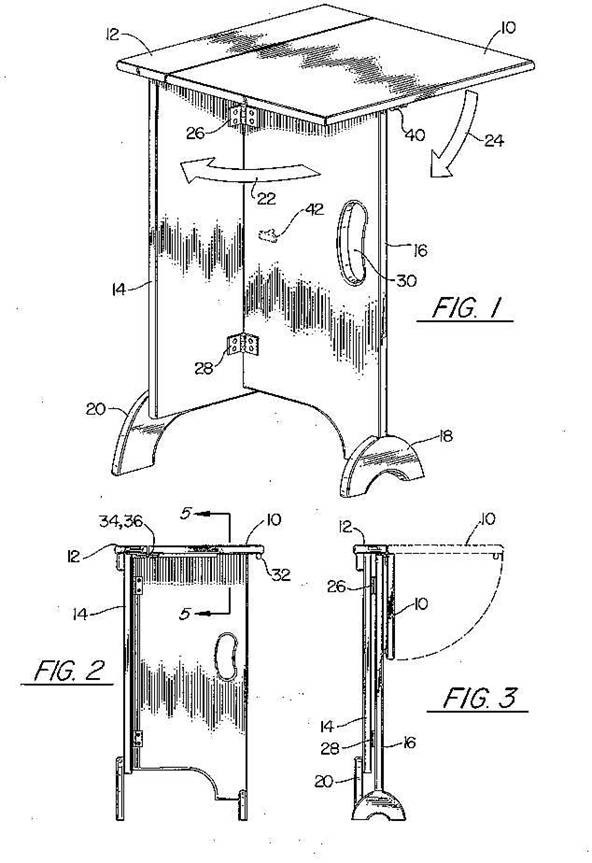

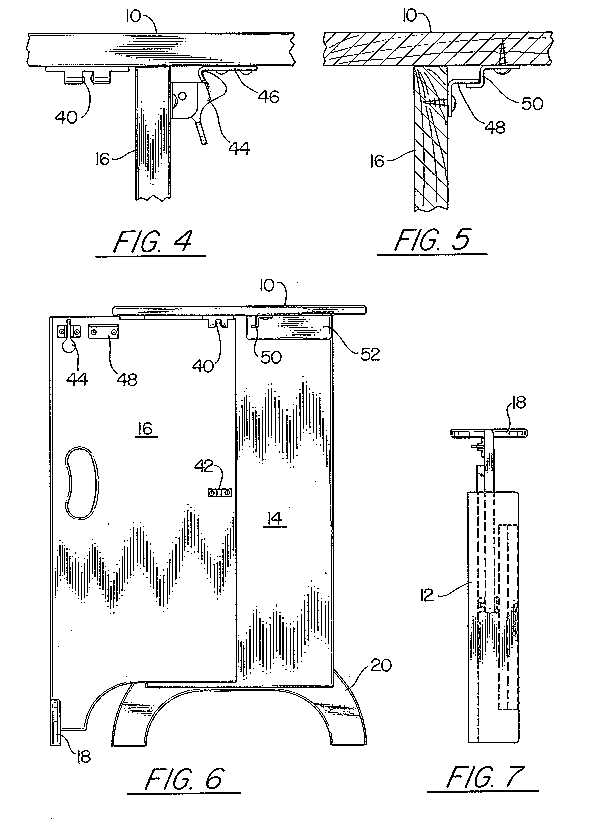

A sturdy collapsible wooden TV/sofa table for use with a chair, couch or sofa, comprising of a foldable tabletop and folding t-shaped leg supports. The foldable tabletop comprises of two coplanar pieces mounted together by two hinges. One of the coplanar portions is a great deal smaller than the other thus allowing for the tabletop to fold into a parallel position against its leg supports when in the collapsed form. The leg supports are also mounted pivotally to each other by two hinges. One leg is mounted perpendicular to the tabletop piece while the other is hinged lengthwise to the middle of the longer portion of the tabletop and folds parallel to it when in the collapsed position. The movable hinged leg is designed to hold the tabletop in the upright position when in use, where it is fastened to a finger latch located underneath the tabletop. The finger latch keeps the leg from moving from its t-shaped position while in the upright position. There is also a z-bracket mounted underneath the tabletop in order to prevent the tabletop from unlatching itself while in the upright position. A button latch is mounted to the underside of the front end of the tabletop and a button clip is mounted on the inner side of leg. In the collapsed position, the button latch engages into the button clip, allowing the tabletop and leg supports to be firmly secured together in a parallel form. This allows for easy storage of the T-table in a collapsed position so as to decrease the amount of space it occupies. The movable hinged leg also contains a handle so as to aid in opening the table and closing it as well as making it portable. This handle is positioned in a manner so as to store the present invention on its side where it can remain in a stable position without any auxiliary supports.
